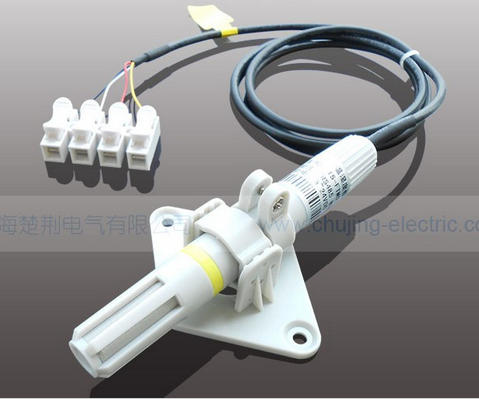

- RH/Temp sensor, Stick
- Manufacturer
- ZGCJ
- Product
- Stick sensor
- Model
- ZGCJ
- Protocol
- Modbus
- Updated
- 2023-11-13
- Driver ID
- 11
Notes
-20 to +80C temperature and 0-100% RH sensor Mounting bracket for surface or duct mount. RED -> +12-24VDC BLACK -> GROUND YELLOW -> Modbus D0 WHITE -> Modbus D1 Default speed is 9600 bps (N81) Address is set by 6 DIP switches (adress range 1-63) NOTE: the addressing is from RIGHT to LEFT, so switch 6 is the lowest bit!
Registers 5
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Relative Humidity | %RH | Relative Humidity in percent |
| 2 | Temperature | °C | Temperature in degrees Celcius |
| 3 | Dew point | °C | Dew point in degrees Celcius |
| 4 | Temperature | °F | Temperature in degrees Farenheit |
| 5 | Dew point | °F | Dew point in degrees Farenheit |
