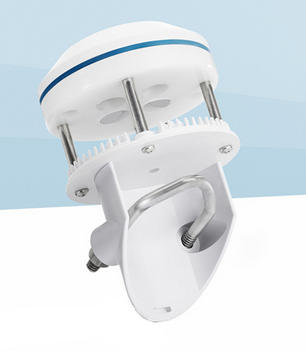

- METER Atmos 22 Anemometer
- Manufacturer
- METER Group Inc.
- Product
- Atmos 22 Ultrasonic
- Model
- Atmos 22
- Protocol
- SDI-12
- Package
- Sensors (SU2202)
- Updated
- 2026-05-28
- Driver ID
- 134
Notes
Ultrasonic anemometer Connect: Brown -> +12VDC (Note! Max 15VDC) Orange -> SDI-12 Sheild -> GND/0V
Registers 8
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Wind Speed | m/s | |
| 2 | Wind Direction | ° | |
| 3 | Gust Wind Speed | m/s | |
| 4 | North Wind Speed | m/s | |
| 5 | East Wind Speed | m/s | |
| 6 | Air Temperature | °C | |
| 7 | Orientation X | ° | |
| 8 | Orientation Y | ° |
