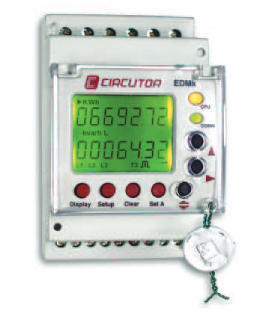

Circutor EDMk-MC

Circutor · EDMk-MC

Manufacturer: Circutor
Product: EDMk-MC
Protocol: Modbus
Package: Meters (SU2201)
Updated: 2026-05-28
Driver ID: 147

Notes

The EDMk three-phase electronic energy meter is capable of  measuring consumed and generated energy (four quadrants): Active energy (consumed and generated), inductive reactive energy (consumed  and generated) and capacitive reactive energy (consumed and generated)

Connect:
ezeio D0 -> #3/B
ezeio D1 -> #5/A
ezeio 0V -> #4/S

Registers 6

#	Name	Unit
1	Active energy +	`kWh`
2	Active energy -	`kWh`
3	Inductive reactive energy +	`kWh`
4	Capacitive reactive energy -	`kWh`
5	Inductive reactive energy -	`kWh`
6	Capacitive reacive energy +	`kWh`
