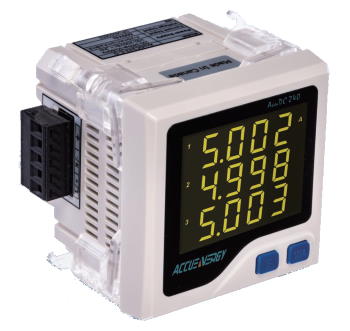

- AccuEnergy ACUDC 240
- Manufacturer
- AccuEnergy
- Product
- AcuDC
- Model
- AcuDC 240
- Protocol
- Modbus
- Package
- Meters (SU2201)
- Updated
- 2026-05-28
- Driver ID
- 173
Notes
AcuDC 240 series monitors DC voltage, current, power and energy. It supports bidirectional current measurement, and also displays meter running hour and load running hour. Connections: (14) A -> ezeio D1 (15) B -> ezeio D0 (16) S -> ezeio 0V
Registers 18
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Volt | V | |
| 2 | Current | A | |
| 3 | Power | kW | |
| 4 | Energy total | kWh | |
| 5 | Energy import | kWh | |
| 6 | Energy export | kWh | |
| 7 | Ah total | Ah | |
| 8 | Ah import | Ah | |
| 9 | Ah export | Ah | |
| 10 | DIn 1 | ||
| 11 | DIn 1 count | ||
| 12 | DIn 2 | ||
| 13 | DIn 2 count | ||
| 14 | AOut 1 | ||
| 15 | AOut 2 | ||
| 16 | Relay 1 | ||
| 17 | Relay 2 | ||
| 18 | Running time | h |
