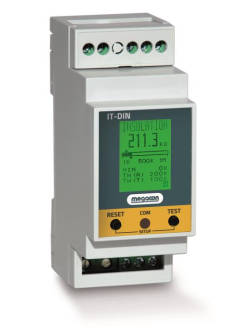

IT-DIN isolation monitor

Megacon · IT-DIN

Manufacturer: Megacon
Product: IT-DIN
Protocol: Modbus
Package: Meters (SU2201)
Updated: 2023-02-21
Driver ID: 204

Notes

Monitor isolation to ground for systems up to 440VAC

Modbus connection:
Terminal 9 (C) -> ezeio 0V/gnd
Terminal 10 (-B) -> ezeio D0
Terminal 11 (+A) -> ezeio D1

Registers 7

#	Name	Unit	Description
1	Resistance	`kΩ`	Instantaneous value
2	Min Resistance	`kΩ`	Lowest recorded value
3	Trip Set	`kΩ`	Relay trip threshold
4	Alarm Set	`kΩ`	Alarm trip threshold
5	State
6	Test
7	Reset
