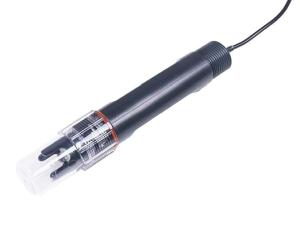

- pH Sensor
- Manufacturer
- OceanVision / Nengshi
- Product
- Digital pH sensor
- Model
- IS-MOD-0150 / ASPS21xx
- Protocol
- Modbus
- Package
- Sensors (SU2202)
- Updated
- 2023-11-13
- Driver ID
- 227
Notes
The i-Submerge IS-MOD-0150 Digital pH Probe is part of the i-Submerge MODBUS range of sensors designed for aquaculture installations ranging from small wet-labs, to commercial scale facilities. These standalone probes are designed to operate on a 24VDC MODBUS(RTU) network and provide control, calibration, and monitoring of pH. Connect: Yellow/485A -> ezeio D0 White/485B -> ezeio D1 Black/Gnd -> ezeio Gnd
Registers 14
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | pH Value | pH | |
| 2 | Temperature | °C | |
| 3 | pH mV | mV | |
| 4 | Calibration state | ||
| 5 | pH Offset | mV | |
| 6 | pH Slope 1 | % | |
| 7 | pH Slope 2 | % | |
| 8 | Temp Comp Type | ||
| 9 | Temp Comp Value | °C | |
| 10 | Sensor type | ||
| 11 | Calibration Standard | ||
| 12 | Mode | ||
| 13 | Mode parameters | ||
| 14 | Calibration status |
