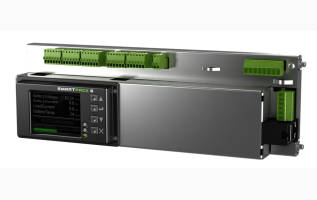

Smartpack S Charge controller

Eltek · Smartpack S · Smartpack S

Manufacturer: Eltek
Product: Smartpack S
Model: Smartpack S
Protocol: Modbus
Package: Light duty electrical (SU2204)
Updated: 2024-10-10
Driver ID: 243

Notes

Telecom DC power system Battery charge controller

Modbus RTU / UART settings or IP configuration needs to be set on-site via built in configuration interface. See Smartpack manual.

Default IP: 192.168.10.20
Default Login: admin
Default Password: admin

RS485 connections
Connect Pin #1 to ezeio D1
Connect Pin #2 to ezeio D0
Connect common to ezeio ground

Registers 63

#	Name	Unit
1	Battery Voltage (@ bus-bar)	`V`
2	Battery Current	`A`
3	Battery Temperature	`°C`
4	Remaining Battery Capacity	`Ah`
5	Battery Time left	`min`
6	Load Current	`A`
7	Load Voltage	`V`
8	Rectifier Voltage	`V`
9	Rectifier Current Nominal	`A`
10	Mains Voltage Phase #1	`V`
11	Mains Voltage Phase #2	`V`
12	Mains Voltage Phase #3	`V`
13	Mains Current Phase #1	`A`
14	Mains Current Phase #2	`A`
15	Mains Current Phase #3	`A`
16	Mains Frequency	`Hz`
17	Solar Current Total	`A`
18	Major Alarm - Rectifiers in Alarm
19	Minor Alarm – Rectifiers in Alarm
20	Major Alarm – Any Battery Alarm
21	Minor Alarm - Any Battery Alarm
22	Battery State of Charge
23	Battery Utilized Life (battery life time)	`Days`
24	Battery Health SOH (battery quality)	`%`
25	Mains voltage phase 1	`V`
26	Mains current total (Measured Mains Monitor)	`A`
27	Generator running minutes	`min`
28	Fuel consumption	`?`
29	Battery cycle count	`Cycles`
30	Depth of discharge	`%`
31	Mains availability minutes	`min`
32	Temperature 1.1	`°C`
33	Temperature 1.2	`°C`
34	Temperature 1.3	`°C`
35	Ground fault alarm
36	Status
37	LiIon Battery 1 Voltage	`V`
38	LiIon Battery 1 Current	`A`
39	LiIon Battery 1 Temp	`°C`
40	LiIon Battery 1 SoC Ah	`Ah`
41	LiIon Battery 1 SoC %	`%`
42	LiIon Battery 1 Env Temp	`°C`
43	LiIon Battery 1 Warning
44	LiIon Battery 1 Protection
45	LiIon Battery 1 Status
46	LiIon Battery 2 Voltage	`V`
47	LiIon Battery 2 Current	`A`
48	LiIon Battery 2 Temp	`°C`
49	LiIon Battery 2 SoC Ah	`Ah`
50	LiIon Battery 2 SoC %	`%`
51	LiIon Battery 2 Env Temp	`°C`
52	LiIon Battery 2 Warning
53	LiIon Battery 2 Protection
54	LiIon Battery 2 Status
55	LiIon Battery 3 Voltage	`V`
56	LiIon Battery 3 Current	`A`
57	LiIon Battery 3 Temp	`°C`
58	LiIon Battery 3 SoC Ah	`Ah`
59	LiIon Battery 3 SoC %	`%`
60	LiIon Battery 3 Env Temp	`°C`
61	LiIon Battery 3 Warning
62	LiIon Battery 3 Protection
63	LiIon Battery 3 Status
