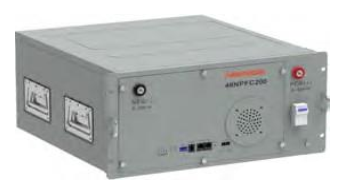

Narada 48NPFC200

Narada · NPFC/MPLhE Series · 48NPFC200

Notes

LiFePO4 Battery Module for Telecom

#	Name	Unit	Description
1	Pack Volt	`V`	Total pack voltage
2	Current	`A`	Amperage flow in and out of pack
3	Remain Capacity	`Ah`	Available energy
4	Average Cell T	`°C`	Average cell temperature
5	Env T	`°C`	External temperature
6	Warning Flag	`Bit`
7	Protection Flag	`Bit`
8	Fault/Status	`Bit`
9	SOC	`%`	State of Charge
10	Circulate number		Total number of charge cycles
11	RES
12	RES
13	RES
14	CellNum		Total number of cell in pack
15	CellVoltage0	`V`
16	CellVoltage1	`V`
17	CellVoltage2	`V`
18	CellVoltage3	`V`
19	CellVoltage4	`V`
20	CellVoltage5	`V`
21	CellVoltage6	`V`
22	CellVoltage7	`V`
23	CellVoltage8	`V`
24	CellVoltage9	`V`
25	CellVoltage10	`V`
26	CellVoltage11	`V`
27	CellVoltage12	`V`
28	CellVoltage13	`V`
29	CellVoltage14	`V`
30	CellVoltage15	`V`
31	TempNum		Numer of temp readings available
32	TempCell 0	`°C`
33	TempCell1	`°C`
34	TempCell 2	`°C`
35	TempCell 3	`°C`
36	TempCell 4	`°C`
37	TempCell 5	`°C`
38	TempCell 6	`°C`
39	TempCell 7	`°C`
40	TempCell 8	`°C`
41	TempCell 9	`°C`
42	TempCell10	`°C`
43	TempCell11	`°C`
44	TempCell12	`°C`
45	TempCell13	`°C`
46	TempCell14	`°C`
47	TempCell15	`°C`
48	RES
49	RES
50	RES
51	RES
