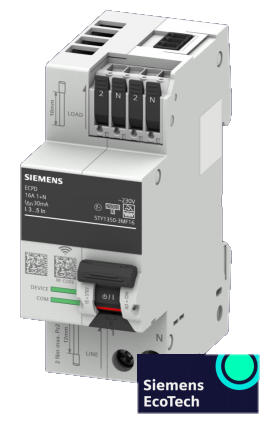

- Siemens SENTRON ECPD 5TY1
- Manufacturer
- Siemens
- Product
- SENTRON 5TY1 ECPD/Circuit breaker
- Model
- 5TY1 COM
- Protocol
- Modbus
- Package
- Meters (SU2201)
- Updated
- 2024-11-12
- Driver ID
- 275
Notes
This is a wireless device. It requires that a POC1000 receiver has already been added to the system, and has been set up with the Siemens software. Please refer to the Siemens documentation for details.
Registers 20
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Radio receive signal RSSI | dBm | |
| 2 | Current temperature | °C | |
| 3 | Average temperature | °C | |
| 4 | Actual current L | A | |
| 5 | Average current L | A | |
| 6 | Max current L | A | |
| 7 | L-N Voltage | V | |
| 8 | Line frequency | Hz | |
| 9 | Active power | W | |
| 10 | Apparent power | VA | |
| 11 | Total reactive power Qtot | VAr | |
| 12 | Power factor | ||
| 17 | Status | ||
| 18 | Alarms status | ||
| 20 | Residual current: Low-pass | A | |
| 24 | Residual current: Fundamental freq | A | |
| 26 | RCD test status | ||
| 31 | Switch device state | ||
| 33 | Electronic switch control | ||
| 34 | Mechanical disconnect |
