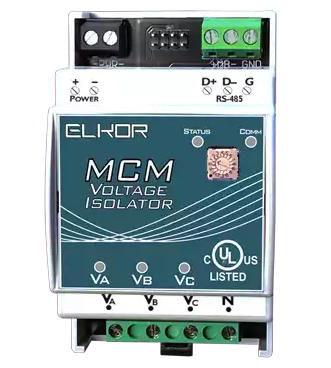

- Elkor MCM-V-Mx Voltage meter
- Manufacturer
- Elkor Technologies
- Product
- MCM-V-Mx
- Protocol
- Modbus
- Package
- Meters (SU2201)
- Updated
- 2025-08-21
- Driver ID
- 286
Notes
Three phase AC voltage meter Connect: ezeio D0 -> MCM D- ezeio D1 -> MCM D+ ezeio 0V -> MCM G jumper to MCM Power - ezeio +V -> MCM Power + Address set on front switch. Set speed in register 1537. Confirm with writing 1 into register 1541.
Registers 13
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Voltage A | V | |
| 2 | Voltage B | V | |
| 3 | Voltage C | V | |
| 4 | Voltage Avg | V | |
| 5 | Voltage AB | V | |
| 6 | Voltage BC | V | |
| 7 | Voltage AC | V | |
| 8 | Voltage LL Avg | V | |
| 9 | Frequency | Hz | |
| 10 | Angle AB | deg | |
| 11 | Angle BC | deg | |
| 12 | Angle AC | deg | |
| 13 | Uptime | s |
