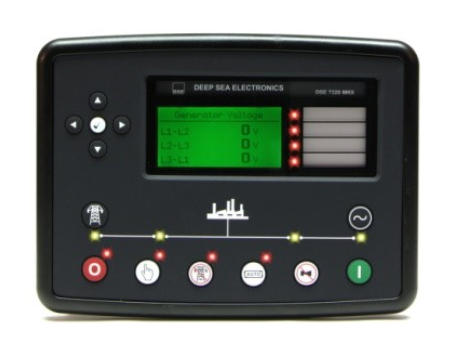

DeepSea Engine Controller General

Deep Sea Electronics · DSE7410 MKII · GenComm

Notes

Basic Generic modbus interface to the DeepSea engine controller series.

Connect:
ezeio D0 -> 60 B
ezeio D1 -> 61 A
ezeio 0V -> 65 SCR

#	Name	Unit
1	Oil pressure	`kPa`
2	Coolant temperature	`°C`
3	Oil temperature	`°C`
4	Fuel level	`%`
5	Charge alternator voltage	`V`
6	Engine Battery voltage	`V`
7	Engine speed	`rpm`
8	Generator L1-N voltage	`V`
9	Generator L2-N voltage	`V`
10	Generator L3-N voltage	`V`
11	Generator L1-L2 voltage	`V`
12	Generator L2-L3 voltage	`V`
13	Generator L3-L1 voltage	`V`
14	Generator L1 current	`A`
15	Generator L2 current	`A`
16	Generator L3 current	`A`
17	Generator frequency	`Hz`
18	Mains L1-N voltage	`V`
19	Mains L2-N voltage	`V`
20	Mains L3-N voltage	`V`
21	Mains L1-L2 voltage	`V`
22	Mains L2-L3 voltage	`V`
23	Mains L3-L1 voltage	`V`
24	Mains L1 current	`A`
25	Mains L2 current	`A`
26	Mains L3 current	`A`
27	Mains frequency	`Hz`
