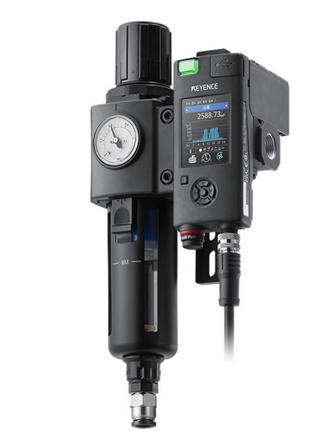

Keyence Air Efficiency Module

Keyence · MP-F series

Manufacturer: Keyence
Product: MP-F series
Protocol: Modbus
Package: Meters (SU2201)
Updated: 2025-04-18
Driver ID: 306

Notes

Used with Ethernet Module MP-FEN1 configured for Modbus/TCP communication

This unit measures flow rate, pressure, temperature, and humidity data. It will also automatically save the measured data, maintaining a history that can be reviewed.
The built-in shut-off valve can prevent air leakage when the monitored equipment stops.

Registers 30

#	Name	Unit
1	Command execution
2	Command status
3	Instantaneous flow	`L/min`
4	Instantaneous flow_Peak	`L/min`
5	Instantaneous flow_Bottom	`L/min`
6	Accumulated flow	`L`
7	Leakage flow rate	`L/min`
8	Saved leak flow rate	`L/min`
9	Pressure_Current value	`MPa`
10	Pressure_Peak	`MPa`
11	Pressure_Bottom	`MPa`
12	Temperature_Current value	`°C`
13	Dew point_Current value	`°C`
14	Humidity_Current value	`%`
15	Valve status monitor
16	Valve control request status
17	Valve operation method
18	Total combined active power	`kW`
19	Total combined apparent power	`kW`
20	Total combined accumulated active energy	`kWh`
21	Total combined accumulated apparent energy	`kWh`
22	Accumulated flow per cycle
23	Electric energy per cycle	`kWh`
24	Cycle time	`s`
25	Flow/Cycle (Today)
26	Electric energy per cycle (Current day)	`kWh`
27	Cycle time (Today)	`s`
28	Cycle count (Today)	`count`
29	Elapsed Time (Today)	`s`
30	Operating Time (Today)	`s`
