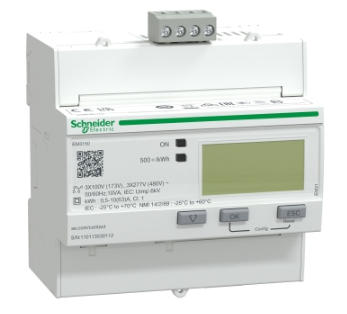

Schneider iEM3x50 energy meter
Schneider Electric · iEM3150 series · iEM3150/3250/3350
- Manufacturer
- Schneider Electric
- Product
- iEM3150 series
- Model
- iEM3150/3250/3350
- Protocol
- Modbus
- Package
- Meters (SU2201)
- Updated
- 2025-09-19
- Driver ID
- 319
Notes
The meters provide the essential measurement capabilities (for example, current, voltage, and energy) required to monitor a 1-phase or 3-phase electrical installation. Connect: ezeio D0 -> Meter D0 ezeio D1 -> Meter D1 ezeio 0V -> Meter Gnd Consult the meter documentation for installation, configuration and wiring of the meter.
Registers 23
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Voltage L1-N | V | |
| 2 | Voltage L2-N | V | |
| 3 | Voltage L3-N | V | |
| 4 | Voltage L-N Avg | V | |
| 5 | Voltage L1-L2 | V | |
| 6 | Voltage L2-L3 | V | |
| 7 | Voltage L3-L1 | V | |
| 8 | Voltage L-L Avg | V | |
| 9 | Current ph1 | A | |
| 10 | Current ph2 | A | |
| 11 | Current ph3 | A | |
| 12 | Current Avg | A | |
| 13 | Active Power ph1 | kW | |
| 14 | Active Power ph2 | kW | |
| 15 | Active Power ph3 | kW | |
| 16 | Active Power Avg | kW | |
| 17 | Power factor | ||
| 18 | Frequency | Hz | |
| 19 | Active Energy Import ph1 | kW h | |
| 20 | Active Energy Import ph2 | kW h | |
| 21 | Active Energy Import ph3 | kW h | |
| 22 | Total Active Energy Import | kW h | |
| 23 | Partial Active Energy Import | kW h |
