PT100-Modbus PTA9B01

Eletechsup · PTA9B01

Manufacturer manual
PT100-Modbus PTA9B01
Manufacturer
Eletechsup
Model
PTA9B01
Protocol
Modbus
Package
Sensors (SU2202)
Updated
2025-08-13
Driver ID
330

Notes

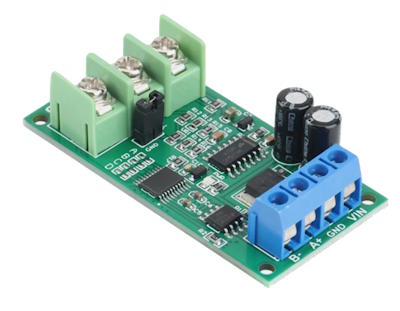

PT100 to Modbus/RTU transmitter board

Connect:
ezeio D0 -> B-
ezeio D1 -> A+
ezeio GND -> GND
ezeio +V -> VIN

Probe connects with signal to P+, and the two loop wires to P-/GND

Default 9600bps, address 1

Write to register 2 to change address
Write to register 3 to change speed
3=9600, 4=19200

Registers 3

#NameUnitDescription
1Temperature°CTemperature in Celsius
2Temperature°FTemperature in Farenheit
3ResistanceΩPT100 resistance
