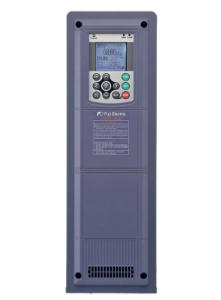

Fuji Frenic HVAC

Fuji · Frenic · HVAC

Notes

Frenic-High performance inverter VFD

#	Name	Unit
1	M01 Frequency reference	`%`
2	M06 Output frequency	`%`
3	M07 Torque real value
4	M08 Torque current	`A`
5	M09 Output frequency	`Hz`
6	W21 Input power	`W`
7	W05 Output current	`A`
8	M12 Output voltage	`V`
9	M14 Op status
10	M16 Last alarm	`Alarm#`
11	M20 Cumulative Runtime	`Hrs`
12	M21 DC link volt	`V`
13	M22 Motor temp
14	M23 Model	`Model#`
15	M25 ROM
16	M73 PID Output
17	S06 Reverse	`Dir`
18	S01 Speed	`%`
19	F03 Max Frequency	`Hz`
20	F15 Frequency Limiter (High)	`Hz`
21	F16 Frequency Limiter (Low)	`Hz`
22	C32 Analog input adjustment	`%`
23	C33 Filter constant, Term 12	`s`
24	C34 Gain reference point	`%`
25	J110 PID Gain
26	J111 PID Intergration Time	`s`
27	J112 PID Diff Time	`s`
28	J118 Upper limit of PID process output	`Hz`
29	J119 Lower limit of PID process output	`Hz`
