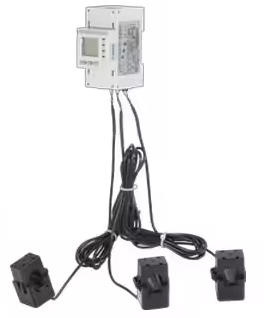

Acrel ADL400N-CT

Acrel · 3 phase energy meter with 0-120A CTs · ADL400N-CT

Notes

3-phase energy meter with split-core CT's

Connect:
ezeio D0 -> B
ezeio D1 -> A

Note: no common available

#	Name	Unit
1	Voltage A-N	`V`
2	Voltage B-N	`V`
3	Voltage C-N	`V`
4	Voltage A-B	`V`
5	Voltage B-C	`V`
6	Voltage C-A	`V`
7	Current A	`A`
8	Current B	`A`
9	Current C	`A`
10	Active Power A	`kW`
11	Active Power B	`kW`
12	Active Power C	`kW`
13	Total Active Power	`kW`
14	Total Active Energy	`kWh`
15	Total Active Forward Energy	`kWh`
16	Total Active Reverse Energy	`kWh`
17	Total Rective Energy	`kvar`
18	Total Apparent Energy	`kVA`
19	Frequency	`Hz`
20	Power Factor Total
21	Power Factor A
22	Power Factor B
23	Power Factor C
24	Reactive Power A	`kvar`
25	Reactive Power B	`kvar`
26	Reactive Power C	`kvar`
27	Apparent Power A	`kVA`
28	Apparent Power B	`kVA`
29	Apparent Power C	`kVa`
