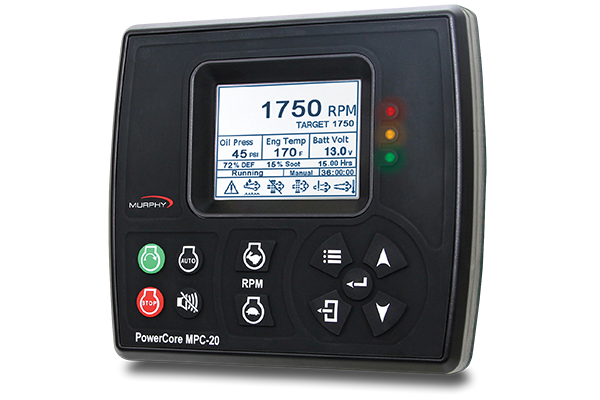

Enovation PowerCore MPC-20 Engine Controller

Enovation Controls / Murphy · PowerCore MPC-20 · MPC-20

Notes

General controller for mechanical or electronic engine applications needing manual/auto start and manual/auto throttling.

#	Name	Unit
1	Current Engine Hours	`h`
2	Actual Engine Speed	`rpm`
3	System Voltage	`V`
4	Actual Engine Oil Pressure	`psi`
5	Actual Engine Temperature	`°F`
6	Controller State
7	Active Shutdown Status	`flags`
8	Active Shutdown Status	`flags`
9	Active Shutdown Status	`flags`
10	Actual System Level	`ft`
11	Modbus Engine Start/Stop
12	Maximum Engine Speed Setpoint	`rpm`
13	Actual Ambient Temp	`°F`
14	Auto/Manual Mode (Manual = 0, Auto = 1)
15	Running Loaded Speed in Auto Setpoint	`rpm`
16	Manual Only (Manual Only Enabled = 1, Disabled = 0
17	Prestart 1 Auto Only = 1, Prestart Auto & Manual = 0
18	Prestart 2 Auto Only = 1, Prestart Auto & Manual = 0
19	J1939.Actual Engine Torque	`%`
20	J1939.Diesel Particulate Filter Outlet Temperature	`°F`
21	J1939.Diesel Particulate Filter Intake Temperature	`°F`
22	J1939.Exhaust Temperature	`°F`
23	J1939.Engine Exhaust Manifold Bank 1 Temperature	`°F`
24	J1939.Boost Pressure	`psi`
25	J1939.Engine Fuel Temperature	`°F`
26	J1939.Engine Intercooler Temperature	`°F`
27	J1939.Diesel Particulate Filter Ash Load Percent	`%`
28	J1939.Diesel Exhaust Fluid Tank Temperature	`°F`
29	J1939.Engine Fuel Delivery Pressure	`psi`
30	J1939.Barometric Pressure	`psi`
31	J1939.Air Filter Diff. Pressure	`psi`
32	J1939.Exhaust Gas Temperature	`°F`
33	J1939.Hydraulic Pressure	`psi`
34	J1939.Hydraulic Temperature	`°F`
35	J1939.Diesel Particulate Filter Active Regeneration Status
36	System Level Engine Start (Auto)	`ft`
37	System Level Engine Stop (Auto)	`ft`
38	System Level Maintain Value (Auto)	`ft`
39	Cycle run time	`s`
