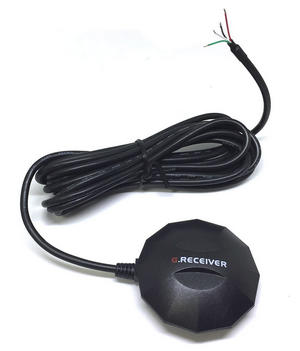

- ezeio GPS receiver GN-803G
- Manufacturer
- eze System
- Product
- GPS receiver
- Model
- GN-803G
- Protocol
- SDI-12
- Package
- Basic services (BASIC)
- Updated
- 2026-05-05
- Driver ID
- 2
Notes
GPS receiver, GPS/GLONASS. Connect : Black -> gnd Red -> +5V (CAREFUL! Not +V !) Green -> SDI-12 White -> leave unconnected
Registers 9
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Time of last fix | HMS | Time of last fix |
| 2 | Satellites in use | sats | Number of satellites in use |
| 3 | Latitude | lat | Latitude in decimal GPS coordinates x 10^6 |
| 4 | Longitude | lng | Longitude in decimal GPS coordinates x 10^6 |
| 5 | Elevation | m | Elevation in m x 10 |
| 6 | Horizontal accuracy | HDOP | |
| 7 | Speed | m/s | Speed in m/s x 1000 |
| 8 | Course | degrees | Direction of travel |
| 9 | Time | HMS | UTC time |
