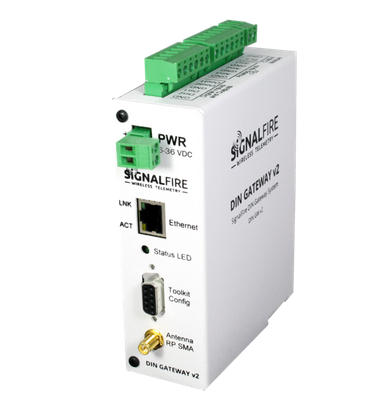

SignalFire Gateway v2

SignalFire · DIN Gateway V2

Manufacturer: SignalFire
Product: DIN Gateway V2
Protocol: Modbus
Package: Sensors (SU2202)
Updated: 2025-03-21
Driver ID: 290

Notes

Gateway connecting SignalFire 900MHz wireless devices to Modbus/TCP or /RTU.
With intgrated I/O ports.

Default MB/TCP settings:
IP : 192.168.1.100
MB Address: 247

Registers 38

#	Name	Unit
1	Digital in 1
2	Digital in 2
3	Digital out 1
4	Digital out 2
5	Analog in 1	`V`
6	Analog in 2	`V`
7	Analog in 3	`V`
8	Supply	`V`
9	RF Rx Count
10	RF Tx Count
11	Analog/Relay Output Module 1 Relay 1
12	Analog/Relay Output Module 1 Relay 2
13	Analog/Relay Output Module 2 Relay 1
14	Analog/Relay Output Module 2 Relay 2
15	Digital Output Module 1 Relay 1
16	Digital Output Module 1 Relay 2
17	Digital Output Module 1 Relay 3
18	Digital Output Module 1 Relay 4
19	Digital Output Module 1 Relay 5
20	Digital Output Module 1 Relay 6
21	Digital Output Module 1 Relay 7
22	Digital Output Module 1 Relay 8
23	Digital Output Module 1 Relay 9
24	Digital Output Module 1 Relay 10
25	Digital Output Module 1 Relay 11
26	Digital Output Module 1 Relay 12
27	Digital Output Module 2 Relay 1
28	Digital Output Module 2 Relay 2
29	Digital Output Module 2 Relay 3
30	Digital Output Module 2 Relay 4
31	Digital Output Module 2 Relay 5
32	Digital Output Module 2 Relay 6
33	Digital Output Module 2 Relay 7
34	Digital Output Module 2 Relay 8
35	Digital Output Module 2 Relay 9
36	Digital Output Module 2 Relay 10
37	Digital Output Module 2 Relay 11
38	Digital Output Module 2 Relay 12
