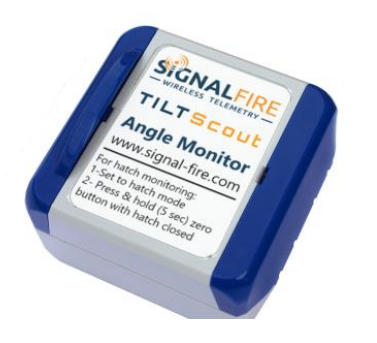

- SignalFire Sentinel Tilt
- Manufacturer
- SignalFire
- Product
- Tilt Scout
- Model
- Scout-TILT-3AABIS
- Protocol
- Modbus
- Package
- Sensors (SU2202)
- Updated
- 2025-04-29
- Driver ID
- 310
Notes
The Tilt Scout is a wireless solid state inclinometer that measures an angle from horizontal with two modes: Hatch detection and Pump Jack detection. The Hatch detection mode enables monitoring of the opening condition (closed, cracked open, opened) of a hatch for environmental and safety concerns. The Pump Jack detection mode detects and reports if it is operating or moving. The Tilt Scout can also be applied to a variety of other applications where there’s a need to detect an angle from horizontal. Requires the SignalFire gateway.
Registers 11
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Hatch is Closed | ||
| 2 | Hatch is Unlatched | ||
| 3 | Hatch is Open | ||
| 4 | Hatch State | ||
| 5 | Open State Count | N | |
| 6 | Low battery | ||
| 7 | Error status | ||
| 8 | Angle | ° | |
| 9 | Battery voltage | V | |
| 10 | RSSI | dBm | |
| 11 | Low Battery Alarm |
