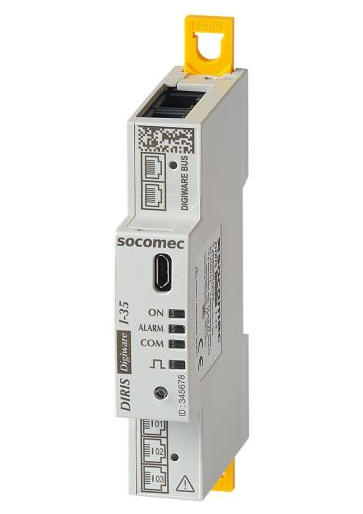

Socomec I-35

Socomec · DIRIS Digiware · I-35

Notes

Three phase AC voltage metering module.
Part of the DIRIS DIgiware system.
Requires a gateway device to communicate.

#	Name	Unit
1	Date of last instance
2	Integration time	`s`
3	Frequency	`Hz`
4	System Ph-N Voltage	`V`
5	System Ph-Ph Voltage	`V`
6	V1-N	`V`
7	V2-N	`V`
8	V3-N	`V`
9	N	`V`
10	U12	`V`
11	U23	`V`
12	U31	`V`
13	I1	`A`
14	I2	`A`
15	I3
16	In	`A`
17	Inba	`%`
18	Idir	`A`
19	Iinv	`A`
20	Ihom	`A`
21	Inb	`%`
22	Snom	`kVA`
23	Hour meter	`h`
24	Active energy positive	`kWh`
25	Active energy negative	`kWh`
26	Active power	`kW`
27	Reactive power	`kVAr`
28	Apparent power	`kVA`
29	Power factor
30	Active power ph 1	`kW`
31	Active power ph 2	`kW`
32	Active power ph 3	`kW`
33	Power factor ph 1
34	Power factor ph 2
35	Power factor ph 3
36	System THD V	`%`
37	System THD U	`%`
38	System THD I	`%`
39	System TDD I
40	THD I1	`%`
41	THD I2	`%`
42	THD I3	`%`
43	THD In	`%`
44	TDD I1
45	TDD I2
46	TDD I3
47	TDD In
48	Ack ID
49	Status
50	Alarm Type
51	Alarm cause
52	Criticality
53	Start date
54	Duration
55	Startup delay	`s`
56	Dropout delay	`s`
