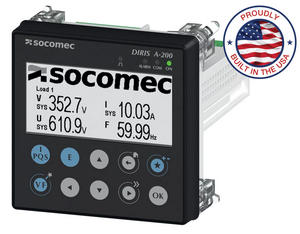

Socomec DIRIS A-200

Socomec · DIRIS A-200

Notes

3 phase panel meter/analyzer.

For RTU, connect:
ezeio D0 -> RS485 -
ezeio D1 -> RS485 +
ezeio 0V -> RS485 NC

Default access code is 0100

#	Name	Unit
1	System Ph-N Voltage	`V`
2	System Ph-Ph Voltage	`V`
3	System Current	`A`
4	Ph-N Voltage : V1	`V`
5	Ph-N Voltage : V2	`V`
6	Ph-N Voltage : V3	`V`
7	Ph-N Voltage : Vn	`V`
8	Ph-Ph Voltage : U12	`V`
9	Ph-Ph Voltage : U23	`V`
10	Ph-Ph Voltage : U31	`V`
11	Current: I1	`A`
12	Current: I2	`A`
13	Current: I3	`A`
14	Current: In	`A`
15	Frequency	`Hz`
16	Total active power	`kW`
17	Total reactive power	`kvar`
18	Total apparent power	`kVA`
19	Total power factor
20	Active power P1	`kW`
21	Active power P2	`kW`
22	Active power P3	`kW`
23	Reactive power Q1	`kvar`
24	Reactive power Q2	`kvar`
25	Reactive power Q3	`kvar`
26	Apparent power S1	`kVA`
27	Apparent power S2	`kVA`
28	Apparent power S3	`kVA`
29	Power factor PF1
30	Power factor PF2
31	Power factor PF3
32	System THD V	`%`
33	System THD U	`%`
34	THD V1	`%`
35	THD V2	`%`
36	THD V3	`%`
37	THD U12	`%`
38	THD U23	`%`
39	THD U31	`%`
