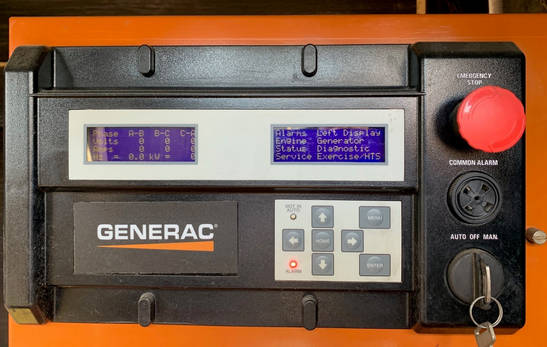

Generac H-100 Genset Control Panel

Generac · H-100

Registers 34

#	Name	Unit
1	OIL TEMP	`°F`
2	COOLANT TEMP	`°F`
3	OIL PRESSURE	`psi`
4	COOLANT LEVEL	`%`
5	USER CFG 05 / FUEL LEVEL	`%`
6	USER CFG 06
7	THROT POS	`%`
8	O2 SENSOR
9	BAT CHARGE CUR	`A`
10	BATTERY VOLTS	`V`
11	CURRENT PHS A	`A`
12	CURRENT PHS B	`A`
13	CURRENT PHS C	`A`
14	AVRG CURRENT	`A`
15	VOLT PHS A-B	`V`
16	VOLT PHS B-C	`V`
17	VOLT PHS C-A	`V`
18	AVRG VOLTAGE	`V`
19	TOTAL POWER KW	`kW`
20	TOTAL PF
21	GEN FREQUENCY	`Hz`
22	ENGINE RPM	`rpm`
23	A/F DUTY CYCLE	`%`
24	ENGINE HOURS	`h`
25	Digital Inputs 1
26	Digital Inputs 2
27	Digital Outputs 1
28	Digital Outputs 2
29	Digital Outputs 3
30	Digital Outputs 4
31	Digital Outputs 5
32	Digital Outputs 6
33	Digital Outputs 7
34	Digital Outputs 8
