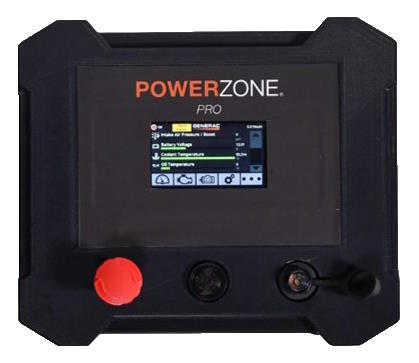

Generac PowerZone PRO

Generac · PowerZone PRO · PowerZone PRO

Manufacturer: Generac
Product: PowerZone PRO
Model: PowerZone PRO
Protocol: Modbus
Package: Engine control (SU2206)
Updated: 2024-07-02
Driver ID: 250

Notes

PowerZone PRO engine controller with communications gateway

Defaut address: 1  or  100
Default baud: 9600

RS-485 connection
B (Pin 14) to DO
A (Pin 12) to D1

DISCLAIMER:
This driver has not been fully validated by eze System.

Registers 80

#	Name	Unit
1	Remote annunciator
2	DI Results 106
3	DOF Results 112
4	113
5	114
6	GEN VOLTAGE AN Vx10	`V`
7	GEN VOLTAGE BN Vx10	`V`
8	GEN VOLTAGE CN Vx10	`V`
9	GEN VOLTAGE LN AVG Vx10	`V`
10	GEN VOLTAGE AB Vx10	`V`
11	GEN VOLTAGE BC Vx10	`V`
12	GEN VOLTAGE CA Vx10	`V`
13	GEN VOLTAGE LL AVG Vx10	`V`
14	GEN CURRENT A Ax10	`A`
15	GEN CURRENT B Ax10	`A`
16	GEN CURRENT C Ax10	`A`
17	GEN CURRENT AVG Ax10	`A`
18	GEN CURRENT N Ax10	`A`
19	GEN APPARENT PWR LL TOTAL	`kVA`
20	GEN REACTIVE PWR LL TOTAL	`kVAr`
21	GEN PF LL AVG
22	AVR FIELD CURRENT/AVR SCR DELAY ANGLE	`A`
23	AVR EXCITATION VOLTAGE/FREQUENCY	`V`
24	GEN FREQ LL HZx10	`Hz`
25	RPM 1	`rpm`
26	BATT VOLTAGE Vx100	`V`
27	BATT CHARGER CURRENT 1	`A`
28	OIL TEMP 1	`°F`
29	OIL PRESS 1	`psi`
30	OIL PRESS 2	`psi`
31	COOLANT TEMP 1	`°F`
32	COOLANT TEMP 2	`°F`
33	COOLANT LEVEL ENGINE 1	`%`
34	GOVERNOR THROTTLE POSITION 1
35	AIR FUEL RATIO DUTY CYCLE 1
36	PRE CAT O2 SENSOR 1
37	INTAKE MANIFOLD AIR TEMP 1	`°F`
38	ENGINE_PERCENT_LOAD_AT_SPEED
39	ENGINE DESIRED SPEED	`rpm`
40	BOOST_PRESS_POST_TURBO_1	`psi`
41	ENGINE_FUEL_DELIVERY_PRESSURE	`kPa`
42	DIESEL_FUEL_TEMP
43	DIESEL_FUEL_FLOW_RATE
44	DIESEL_FUEL_LEVEL_1	`%`
45	INTAKE AIR PRESSURE DELTA FILTER 1
46	INTAKE AIR PRESSURE
47	??? alarm_global_commands
48	alarm_globals
49	Engine_Hour_Now	`h`
50	Engine_Status_Word
51	Genset_Status_Word
52	??? _maint_life_remaining
53	Engine_kW_Hours_Now	`kWh`
54	_o2_sensor
55	_gov_position
56	alarm_global
57	auto_off_manual	`Value`
58	battery_charger_current	`A`
59	battery_voltage_vx100	`V`
60	def_level	`%`
61	fuel_level	`%`
62	fuel_pressure	`psi`
63	gen_frequency	`Hz`
64	turbo_boost_pressure	`psi`
65	intake_air_temperature	`°F`
66	kw_hours	`kWh`
67	gen_last_kwhr	`kWh`
68	last_run_hours	`h`
69	oil_level	`%`
70	gen_total_kw	`kW`
71	gen_total_power_factor
72	rpm1	`rpm`
73	engine_hours_now	`h`
74	system_status
75	battery_temperature
76	sync_angle
77	alarm_log_idx
78	event_log_idx
79	gen_switch_closed	`State`
80	_remote_start	`Command`
