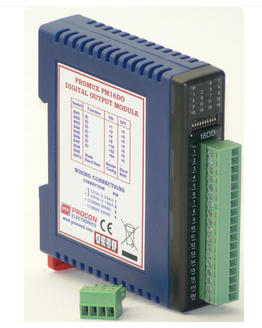

Procon Promux 16DO

Notes

Modbus output expander. Provices 16 transistor outputs.
Connect:
  (1: -) -> gnd
  (2: +) -> +V or external power source.
  (3: rs485 +) -> D1
  (4: rs485 -) -> D0

Registers 16
