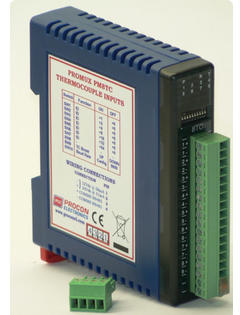

Procon Promux 8TC

Procon · Promux 8TC · 8TC

Manufacturer: Procon
Product: Promux 8TC
Model: 8TC
Protocol: Modbus
Package: I/O expansion (SU2200)
Updated: 2023-11-13
Driver ID: 20

Notes

Modbus input expander.
8 analog 0-10V inputs.
Connect:
  (1: -) -> gnd
  (2: +) -> +V or external power source.
  (3: rs485 +) -> D1
  (4: rs485 -) -> D0

Registers 17

#	Name	Unit
1	Input 1	`°C`
2	Input 2	`°C`
3	Input 3	`°C`
4	Input 4	`°C`
5	Input 5	`°C`
6	Input 6	`°C`
7	Input 7	`°C`
8	Input 8	`°C`
9	CJC temp	`°C`
10	Input 1	`°F`
11	Input 2	`°F`
12	Input 3	`°F`
13	Input 4	`°F`
14	Input 5	`°F`
15	Input 6	`°F`
16	Input 7	`°F`
17	Input 8	`°F`
