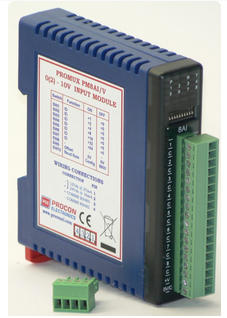

- Procon Promux 8AI/V
- Manufacturer
- Procon
- Product
- Promux 8AI/V
- Model
- 8AI/V
- Protocol
- Modbus
- Package
- I/O expansion (SU2200)
- Updated
- 2023-11-13
- Driver ID
- 19
Notes
Modbus input expander. 8 analog 0-10V inputs. Connect: (1: -) -> gnd (2: +) -> +V or external power source. (3: rs485 +) -> D1 (4: rs485 -) -> D0
Registers 8
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Input 1 | V | |
| 2 | Input 2 | V | |
| 3 | Input 3 | V | |
| 4 | Input 4 | V | |
| 5 | Input 5 | V | |
| 6 | Input 6 | V | |
| 7 | Input 7 | V | |
| 8 | Input 8 | V |
