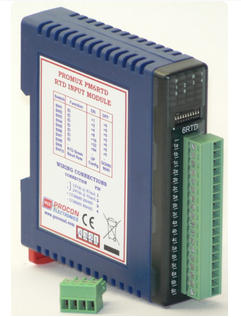

- Procon Promux 6RTD
- Manufacturer
- Procon
- Product
- Promux 6RTD
- Model
- PM6RTD
- Protocol
- Modbus
- Package
- I/O expansion (SU2200)
- Updated
- 2025-05-05
- Driver ID
- 21
Notes
Modbus input expander. 8 analog 0-10V inputs. Connect: (1: -) -> gnd (2: +) -> +V or external power source. (3: rs485 +) -> D1 (4: rs485 -) -> D0
Registers 12
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Input 1 | °C | |
| 2 | Input 2 | °C | |
| 3 | Input 3 | °C | |
| 4 | Input 4 | °C | |
| 5 | Input 5 | °C | |
| 6 | Input 6 | °C | |
| 7 | Input 1 | °F | |
| 8 | Input 2 | °F | |
| 9 | Input 3 | °F | |
| 10 | Input 4 | °F | |
| 11 | Input 5 | °F | |
| 12 | Input 6 | °F |
